New! Power Brace for TOYOTA AQUA(NHP10) now available.

NEW:CUSCO Power Brace for TOYOTA AQUA(NHP10) now available.


【Vehicle】
TOYOTA AQUA NHP10
・Power Brace seat rail plus
・Power Brace Rear Trunk bar Plus
・Power Brace Rear

Body Parts for Reinforcement

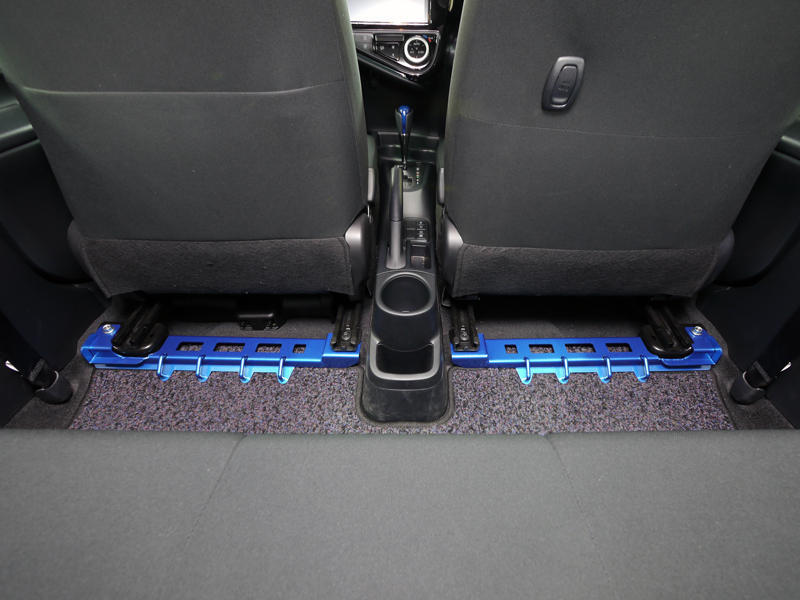

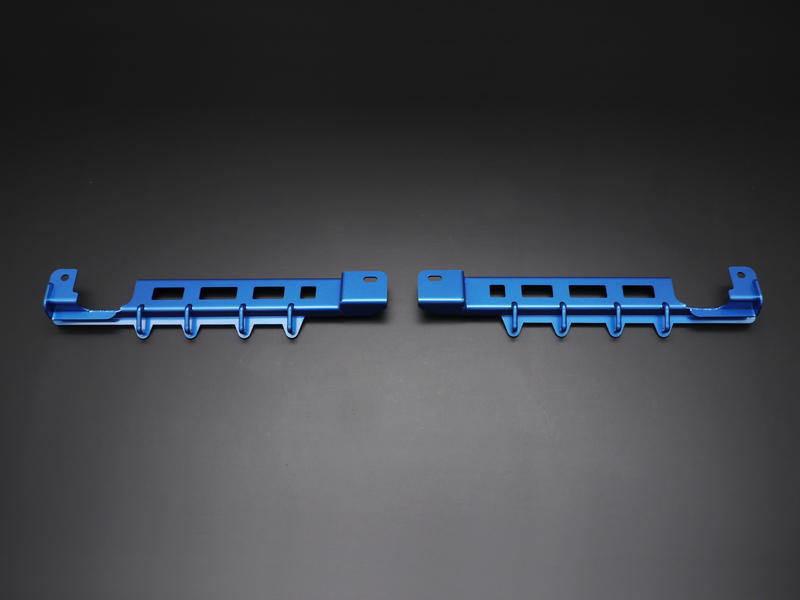

Power Brace seat rail plus
〜Body reinforce of next genelation〜
Improve the rigidity of left and right of rear cabin and torsional rigidity of vehicle.

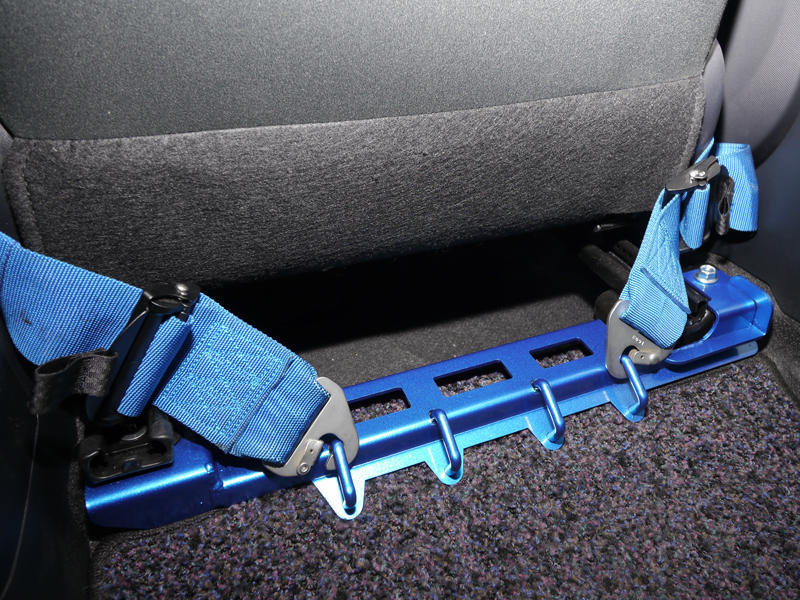

This Power Brace has an anchor, so you can use your Racing Harness. (Over 4 point)
※Notice
・Please use for the lower back harness the anchor of this power brace when you use. Please do not use for shoulder harness.
(Over 4 point)
(We recommend to use power brace rear trunk bar plus 949-492-TP for shoulder harness.)
・Please follow the manual when you use harness.





Power Brace seat rail plus
【Vehicles】
TOYOTA AQUA NHP10
Model:1NZ-FXE(1.5L NA+1LM motor)
Front wheel drive.
【Parts No.】  949-492-SP
【Price】¥17,000+tax
【JAN code】4996 3381 10046
【Installation time】30min
This is reference time, when the mechanic who is educated by profession installs with dedicated tools for that vehicles in the factory.
【Notice for installation】
・It is able to install steal bolt on.
・This is not included 4 point racing harness.

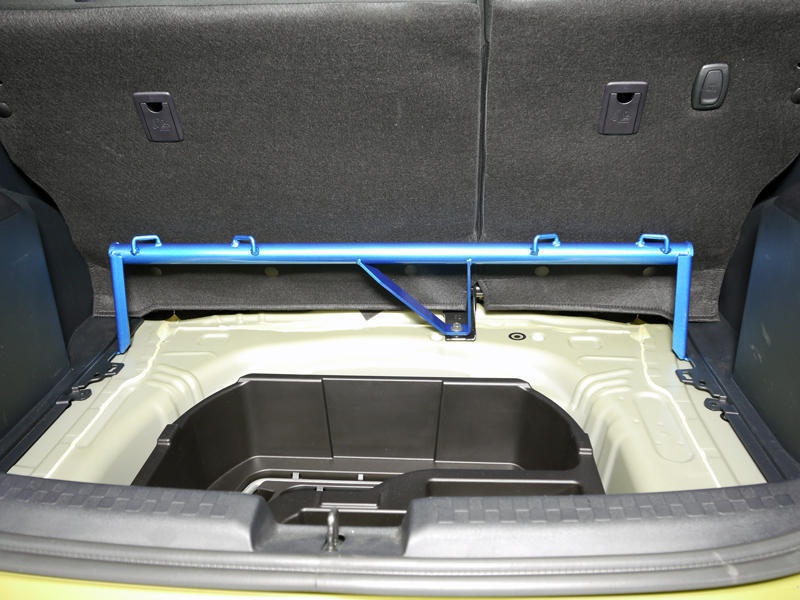

☆・Power Brace Rear Trunk bar Plus

〜Improve the rigidity of a rear body section.〜
・Improve the rigidity of left and right of rear cabin and torsional rigidity of vehicles.

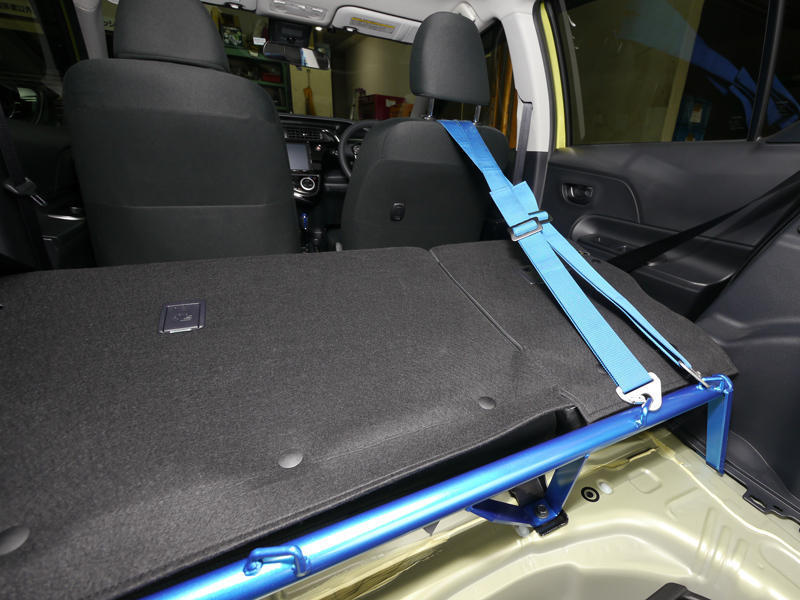

・This Power Brace has an anchor, so you can use your Racing Harness. (Over 4 point)
※Notice
・Please use for the shoulder harness the anchor of this power brace when you use. Please do not use for lower back harness.(Over 4 point)
(We recommend to use power brace seat rail plus 949-492-S for lower back harness.)
・Please follow the manual when you use harness.



・Power Brace Rear Trunk bar Plus
【Vehicles】
TOYOTA AQUA NHP10
Model:1NZ-FXE(1.5L NA+1LM motor)
Front wheel drive.
CVT
【Parts No.】  949-492-TP
【Price】¥20,000+tax
【JAN code】 4996 3381 10053
【Installation time 1.1-1.4h (Install 1.1h/adjust the interior 30min)
This is reference time, when the mechanic who is educated by profession installs with dedicated tools for that vehicles in the factory.
【Notice】
・It is able to install steal bolt on.
・This is not included 4 point racing harness.
・You have to recline the rear seat when you use 4point harnesses.

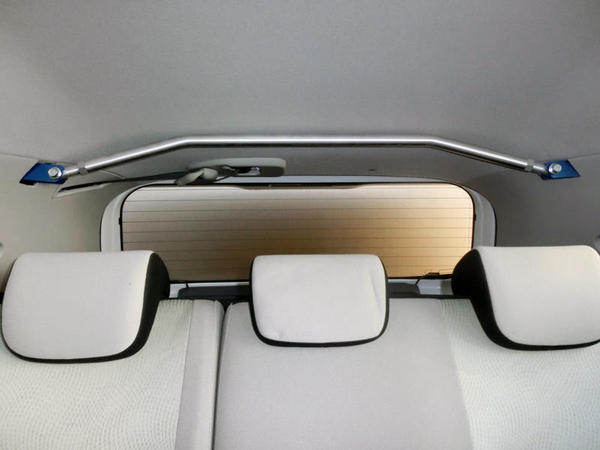

☆Power Brace Rear

〜Revise the rigidity of trunk opening.〜
・Improve the rigidity of rear cabin and torsional rigidity of vehicles.
・Suppresses the strain of vehicle and uncomfortable movement, degradation over time.
・Improve the rigidity of vehicles by combining left and right of C pillar.
・Uses Φ22Aluminum shaft for steal bracket. It is able to install bolt on.(Need to adjust the interior.)
・It is not prevent the rear view, and along the roof shape to secure the head space of rear seat.

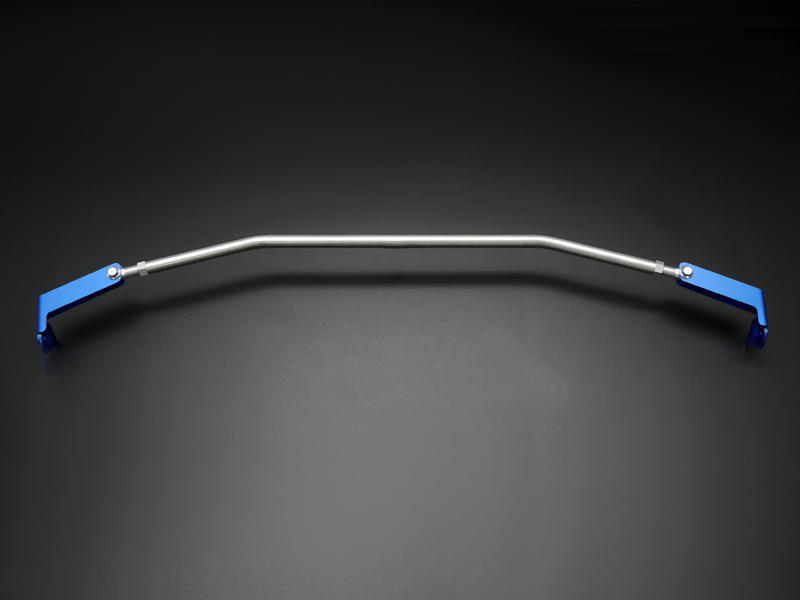

Power Brace Rear Pillar
【Vehicles】
TOYOTA AQUA NHP10
Model:1NZ-FXE(1.5L NA+1LM motor)
Front wheel drive.
CVT
【Parts No.】  949-492-RP
【Price】¥12,000+tax
【JAN code】 4996 3381 10039
【Installation time】1.5Hour (Install 1h/adjust the interior 30min)
This is reference time, when the mechanic who is educated by profession installs with dedicated tools for that vehicles in the factory.
【Notice】
・It is able to install steal bracket and Φ22aluminum shaft a bolt on.
・Need to opening process the interior of C pillar when install this power brace.(Both left and right of rear side garnish.)
