New Products: Subaru Forester (SJG)

Introducing: Cusco suspension coilovers for the Subaru Forester (SJG) models, featuring Street ZERO-A & Street ZERO-S. Other products are currently available including chassis components, suspension parts, and various accessories.

SJG_TOP.jpg SJG_side_TOP.jpg

A Suspension Coilover Kit that Augments the Powerful DIT Powerplant

The 4th generation all terrain Subaru Forester comes equipped with a 2.0 liter Direct Injection Turbo (DIT) FA20 engine which puts out 280 horsepower as a versatile automobile regardless of its terrain. In order to release the full potential of this machine, Cusco has engineered two types of coilover suspension units, the STREET ZERO-A & STREET ZERO-S.

The Street ZERO-A features a full height adjustable system enables the perfect ride height adjustment without sacrificing damper stroke or spring preload. The newly developed 40 way adjustable twin-tube shock absorber system enables a wide range of suspension setting suitable for virtually any given road condition. The front spring rates have been set on the higher end to enable the best performance and comfort targeted for larger aftermarket wheels with low profile tires. The rear springs were matched with the shock valve specifications where it accomodates for enhanced compression stroke.

The Street ZERO-S series suspension coilover system is designed to provide a lowered vehicle ride height while maintaining comfort for daily driven street cars. The newly developed twin tube shock absorber features a virtually noiseless design due to its internal low compression gas. A new base valve design enables a comfortable and mild ride that adapts to almost any street condition, set at the most ideal damper rate from factory. This suspension coilover basically is a full ride height adjustable system where the shock absorber stroke and spring pre-load rate is retained no matter what the vehicle ride height is set at.

Subaru Forester (SJG)

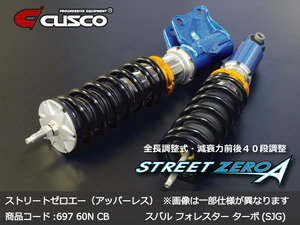

STREET ZERO A


【Application】 Subaru Forester
【Model】 SJG FA20 DIT Direct Injection
【Part No】 697 60N CB
【Base MSRP】¥148,000
【MSRP w/5% tax】¥155,400
【Recommended Height Setting ※1】 Ft:-55~-15mm / Rr:-85~-15mm
【Maximum Height Parameter ※2】 Ft:-134~-12mm / Rr:-87~-14mm
【Upper Mount】 Ft: None (Use Factory OEM)  / Rr: None (Use Factory OEM)
【Spring Rate (kgf/mm)】 Ft: 6(7 & 8 also avail) / Rr: 5(6 avail)
【Notes】 Ft: Full Height Adjustable Coilover, 40 Way Damper / Rr: Full Height Adjustable Coilover, 40 Way Damper

※1 Data based off internal R&D
※2 Approximate calculations displayed, use caution before proceeding
Some products may not be legal for use on public highways
Do not exceed recommended specifications. Doing so may result in serious injury, damage, or even death. Carrosser is not responsible for any claims.

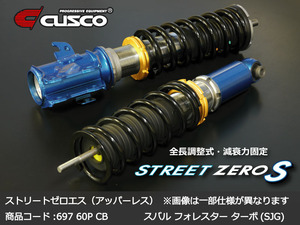

Subaru Forester (SJG)

STREET  ZERO S


【Application】 Subaru Forester
【Model】 SJG FA20 DIT Direct Injection
【Part No】
697 60P CB
【Base MSRP】¥122,000
MSRP w/5% tax】¥128,100
Recommended Height Setting ※1】 Ft:-60~-30mm / Rr:-75~0mm
Maximum Height Parameter ※2】 Ft:-134~-28mm / Rr:-75~-0mm
【Upper Mount】 Ft: None (Use Factory OEM)  / Rr: None (Use Factory OEM)
【Spring Rate (kgf/mm)】 Ft: 6(7 & 8 also avail) / Rr: 5(6 avail)
【Notes】 Ft: Full Height Adjustable Coilover, Fixed Damper / Rr: Full Height Adjustable Coilover, Fixed Damper

※1 Data based off internal R&D
※2 Approximate calculations displayed, use caution before proceeding
Some products may not be legal for use on public highways
Do not exceed recommended specifications. Doing so may result in serious injury, damage, or even death. Carrosser is not responsible for any claims.





Add some sporty performance to your Subaru Forester SUV!

The Forester comes designed with great performance traits from the factory but increasing further chassis stiffness can enable an enhanced linear suspension movement.

【Application】 Subaru Forester
【Model】 SJG FA20 DIT Direct Injection



☆Strut Tower Bar

Strut Tower Bars eliminate chassis flex at the most vital area of the car - between the strut towers, essentially to prevent the misalignment of suspension mounting points experienced during high cornering loads. The end result is the suspension performing at its intended optimal condition with the suspension geometry in tact.

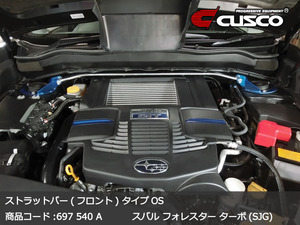

◆Front Strut Tower Bar Type-OS


Part No:   697 540 A
Base MSRP: ¥15,000    MSRP w/5% tax: ¥15,750
JAN Code: 4996 3386 9409 0
Version: Type OS Type 2
Shaft

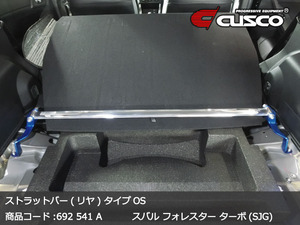

◆Rear Strut Tower Bar Type-OS


Part No:   692 541 A
Base MSRP: ¥15,000    MSRP w/5% tax: ¥15,750
JAN Code 4996 3386 9210 8
Version: Type OS Type 1 Shaft



☆Powerbrace

Developed by chassis engineers based off the data logged directly from CUSCO motorsports research. The Powerbrace strengthens chassis and minimizes body flex especially at cornering loads, enabling optimal suspension movement at the intended geometrically aligned state. Having the same effect as stitch welding a chassis, the Powerbrace series are 100% bolt-on and completely effective on all vehicle chassis no matter stock or highly modified.


◆Powerbrace Front Side

Part No: 697 492 FS
Base MSRP:¥17,000   MSRP w/5% tax: ¥17,850
JAN Code: 4996 3380 4807 3
Install Time: 0.5h

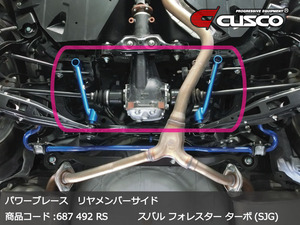

◆Powerbrace Rear Member Side

Part No: 687 492 RS
Base MSRP: ¥13,000    MSRP w/5% tax: ¥13,650
JAN Code: 4996 3380 4668 0
Install Time: 0.5h


◆Powerbrace Rear End
Part No:677 492 RE
Base MSRP:¥17,000   MSRP w/5% tax: ¥17,850
JAN Code 4996 3380 4659 8
Install Time: 1.0h

☆Sway Bars
The Cusco anti-sway bar will dramatically reduce body roll since its stiffness is greater than the factory bar or if the vehicle is not equipped with one.  The larger diameter and steel strength bar give the Cusco bar more resistance against torsion, which helps keep the vehicle stabilized during cornering and reduces weight transfer.

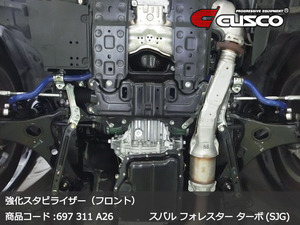

◆Front Sway Bar

Part No: 697 311 A26
Base MSRP: ¥26,000    MSRP w/5% tax: ¥27,300
JAN Code 4996 3380 9560 2
Notes: Solid 26mm 135% over factory OEM (24mm)
Install Time: 1.0h

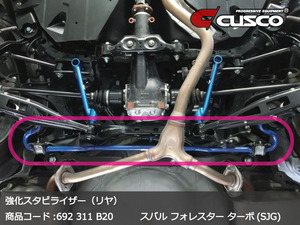

◆Rear Sway Bar

Part No: 692 311 B20
Base MSRP: ¥21,000    MSRP w/5% tax: ¥22,050
JAN Code 4996 3380 9733 0
Notes: Solid 20mm 197% over factory OEM (16mm)
Install Time: 1.0h


☆Sports Acceleration Pedal
Cusco Acceleration Pedal Attachment installs over your factory pedal, positioning the gas and brake pedals more closer together. This enables easy heel and toe operation. Made from high quality stainless steel material for long lasting durable use.



Cusco Sports Acceleration Pedal

Part No:  965 766 A
Base MSRP: ¥3,800    MSRP w/5% tax: ¥3,990
JAN Code: 4996 3380 6119 5
Notes: Stainless Steel, Completely Bolt-on

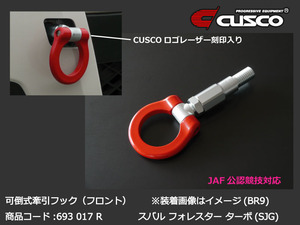

☆Folding Tow Hook
Add the Cusco Tow Hook to your vehicle that sees competition, track support will appreciate it, and so will your vehicle.  Made from strong steel and designed to bolt-on. The swivel tow hook can be folded 90 degrees when not in use, which will minimizes its protrusion from the vehicle. JAF (Japanese Automobile Federation) compliant, meaning these have passed the strict national vehicle safety standards.


◆Cusco Folding Tow Hook

Front
Part No: 693 017 R
Base MSRP: ¥9,800    MSRP w/5% tax:¥10,290
JAN Code: 4996 3380 0272 3

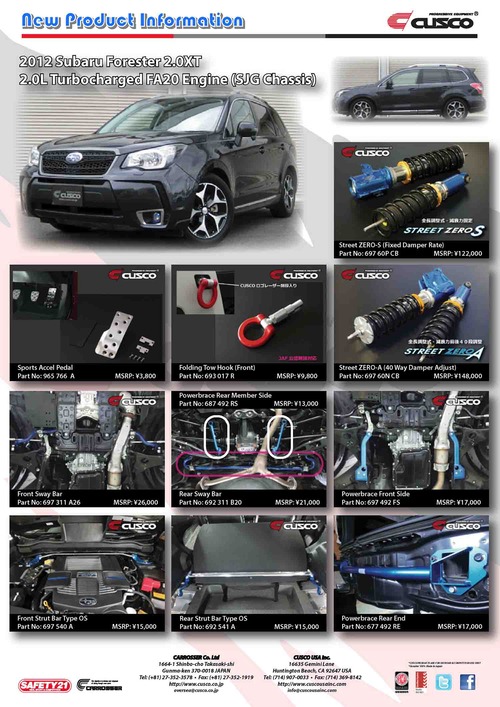

Subaru Forester SJG A4.jpg

Download the New Product Release here for the Subaru SJG (667 kb): Subaru Forester SJG A4.pdf
