FIA Joint Type Rollcage 86/BRZ

Fabricated in compliance to the FIA Appendix J Article 8 under safety cages. The new joint design enables participation in FIA and JAF sanctioned races.

  • Removable member (dismountable joints) approved by FIA specifications
  • Reinforcement gusset (junction or bend) approved by FIA specifications
  • Rollcage mounting foot (base plates) are bolt-in type however may be welded
  • to the bodyshell/chassis in addition to the bolts.
  • Main arch (hoop) configured at 45mm OD t=2.6mm, all other piping at
  • 40mm OD t=2.0mm
  • Windscreen pillar reinforcement fitted on A pillar to meet with FIA specifications


Click image below to view larger version

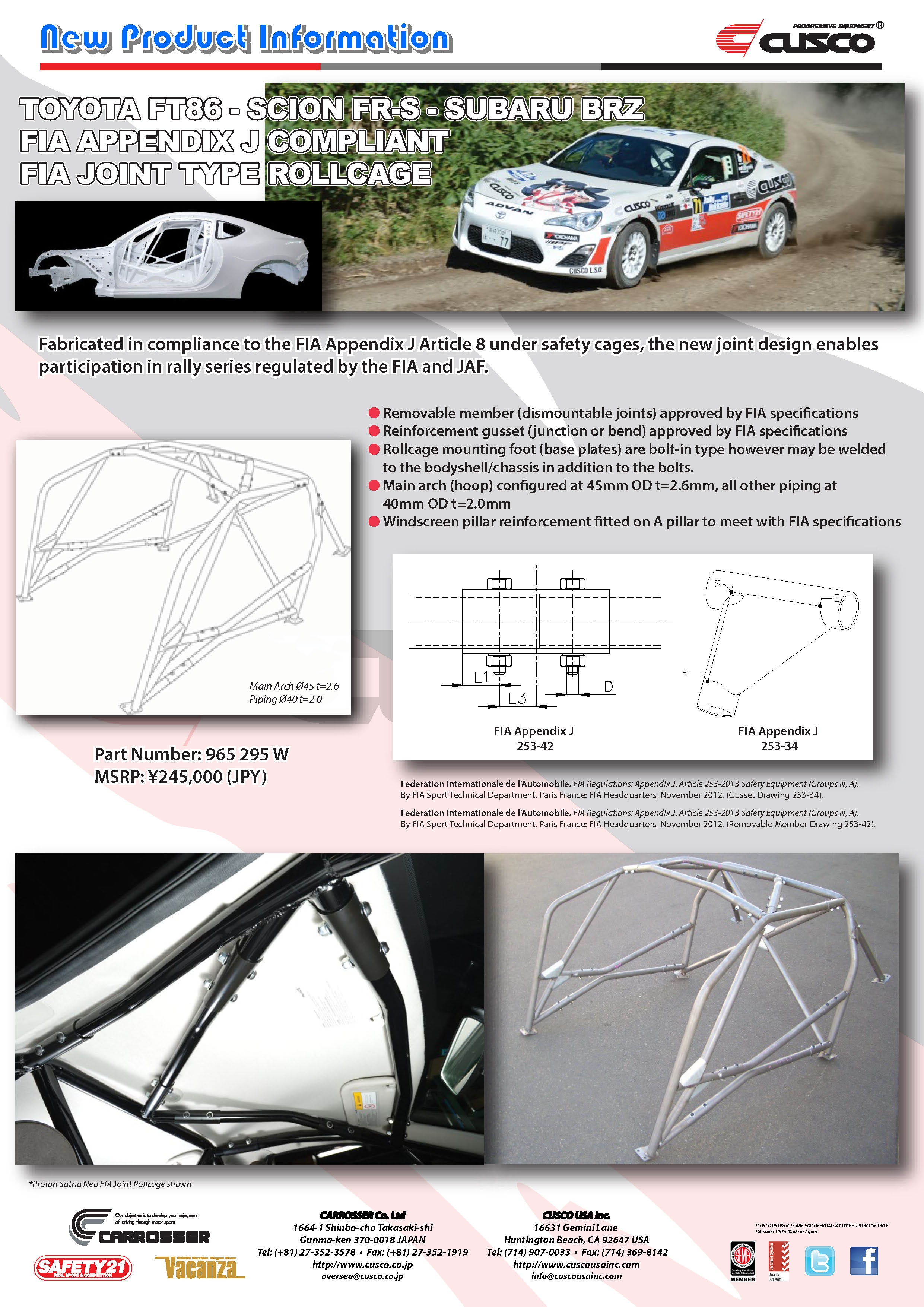

FIA Rollcage FT86 BRZ_A4.jpg

PDF Download (A4 Size 550kb): FIA Rollcage FT86 BRZ_A4.pdf

PDF Download (Letter Size 1mb): FIA Rollcage FT86 BRZ.pdf
