Close Ratio Transmission Gears & 4.556 Final R&P

Cusco Driveline Components for Toyota 86 / Scion FR-S / Subaru BRZ

Designed for the factory Toyota 86 / Subaru BRZ 6 speed manual transmission, the close ratio gear set is ideal for keeping the power and torque band at its most effective region. The kit consists of a close ratio1st and 2nd gear which prevents engine revolution drop during up-shifting to keep the RPMs inthe optimal range. Combined with a lower ratio 4.566 final gear, this is the most powerful modication that can be done to extract the full potential of the naturally aspirated machine.


Close Ratio Gear Set


4.556 Ring and Pinion Final Gear Set

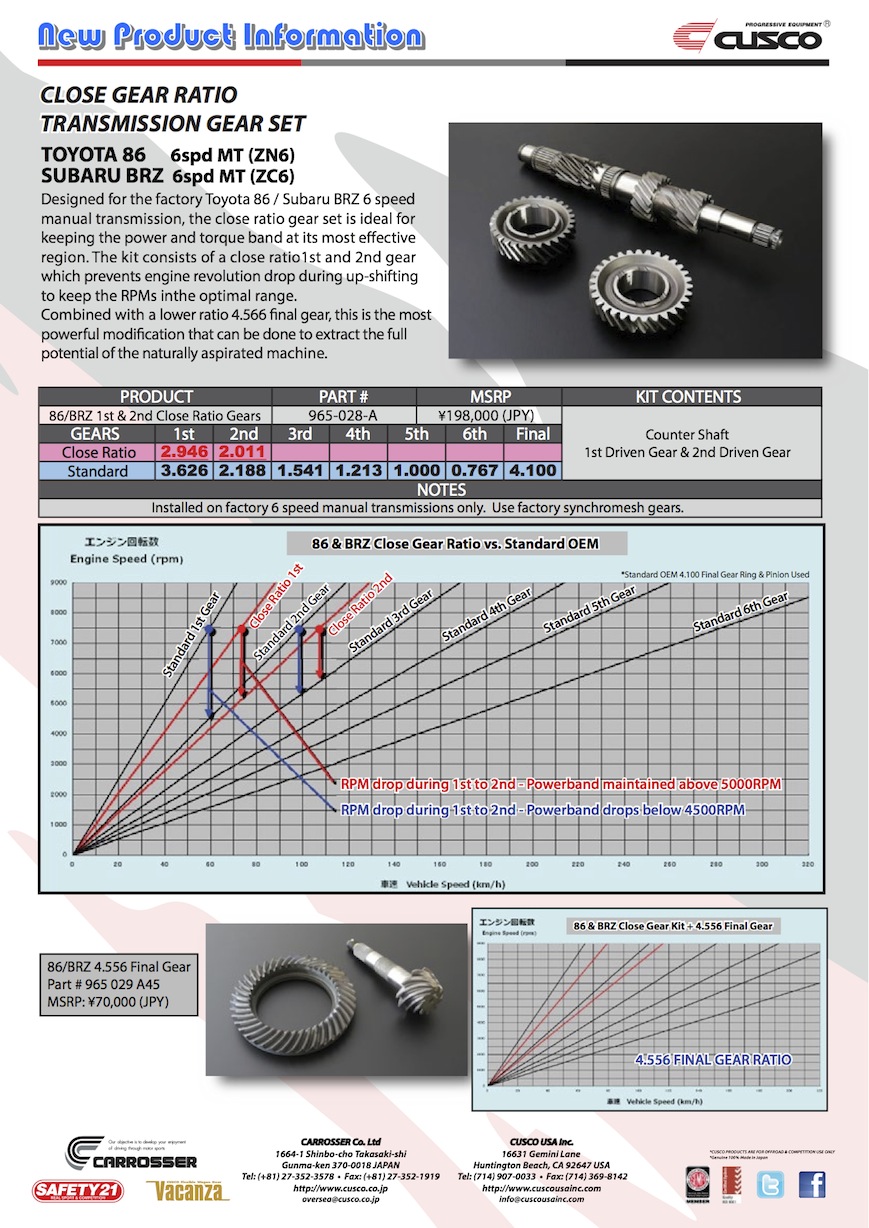

86 BRZ Gears_A4.jpg

PDF Download (385 kb A4 size): 86 BRZ Gears_A4.pdf

PDF Download (360 kb Letter Size): 86 BRZ Gears_Letter.pdf
