CUSCO SPORT TN_S TN_R pdf Toyota CHR pdf

Honda Fit & Fit Hybrid (GK & GP5) New Products


New products from Cusco available for the new generation Honda Fit (FIT3)! A redesigned suspension coilover kit has been developed along with various other parts for this application.

☆Fitment on various Gen 3 Honda Fit models indicated by these icons
GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg

■Suspension Coilover Kit


  • 40 way adjustable needle valve shock absorber w/ redesigned base valve
  • Low compression twin-tube shock absorber
  • Full height adjustable structure, for full shock stroke capabilities
  • Reuse factory upper mounts for comfort and less noise
  • Precision cut shock case thread with special coating
  • Quiet operation
  • Redesigned base valve which suits larger wheel setups
  • Each suspension exceeds over 500 hours of elemental testing standards
  • 1 year 10,000 km warranty (Requires registration)
  • Full rebuild services available (Fees apply)

 GK3_slantimage.JPG GK3_sideimage.JPG

☆STREET ZERO A・・・40 Way Damper Adjust, Full Height Adjustable Coilover
Standard Kit (Non-upper mount kit)

Application: GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg
Part No: 3A2 60N CB
MSRP w/5% Tax: ¥149,100
Base MSRP: ¥142,000
JAN Code: 4 996338 054609
Coilover Structure: Fr - Full Height Adjust Coilover  Rr - Threaded Spacer Type
Damper Adjustment: Fr - 40 Way  Rr - 40 Way  ※e-con2 not compatible due to lack of space
Spring Rate Fr - Exclusive 4.5kgf/mm  Rr - Exclusive 2.9kgf/mm
Upper Mount: Fr - Reuse Factory  Rr - Reuse Factory
※Centerlock Upper Mounts Available Part No:386 6SR 01S Base MSRP: ¥30,000 Fixed Camber (Sold Separately)
Recommended Height Parameter:  Fr:-50mm~-10mm Rr:-50mm~-25mm
Maximum Height Parameter: Fr:-50mm~0mm  Rr:-65mm~-25mm
※ Approximate calculations displayed, use caution before proceeding

Some products may not be legal for use on public highways. Do not exceed recommended specifications. Doing so may result in serious injury, damage, or even death. Carrosser is not responsible for any claims. Notes: Fixed front camber setting, e-con2 not compatible

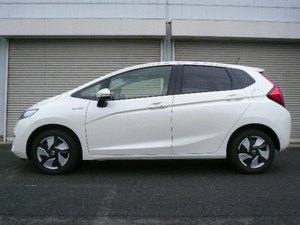

GP5_slantimage.JPG GP5_sideimage.JPG

☆STREET ZERO A・・・40 Way Damper Adjust, Full Height Adjustable Coilover
Front Camber Adjustable Kit (Camber bolt type)

Application: GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg
Part No: 3A2 60N CBD
MSRP w/5% Tax: ¥154,350
Base MSRP: ¥147,000
JAN Code: 4 996338 054616
Coilover Structure: Fr - Full Height Adjust Coilover  Rr - Threaded Spacer Type
Damper Adjustment: Fr - 40 Way  Rr - 40 Way  ※e-con2 not compatible due to lack of space
Spring Rate Fr - Exclusive 4.5kgf/mm  Rr - Exclusive 2.9kgf/mm
Upper Mount: Fr - Reuse Factory  Rr - Reuse Factory
※Centerlock Upper Mounts Available Part No:386 6SR 01S Base MSRP: ¥30,000
                    [Fixed Camber (Sold Separately)  Camber is adjusted by special camber bolts]
Recommended Height Parameter:  Fr:-50mm~-10mm Rr:-50mm~-25mm
Maximum Height Parameter: Fr:-50mm~0mm  Rr:-65mm~-25mm
※ Approximate calculations displayed, use caution before proceeding

Some products may not be legal for use on public highways. Do not exceed recommended specifications. Doing so may result in serious injury, damage, or even death. Carrosser is not responsible for any claims. Notes: Fixed front camber setting (w/special camber adjust bolt), e-con2 not compatible



■Suspension Parts (Auto Levelizer, Sway Bars)

☆Auto Headlight Levelizer (Short)

The modern automobiles of today are equipped with an automatic headlight leveler that adjusts to the vehicle’s ride height in real time. However when the vehicle suspension is altered, (in most cases lowered) the headlights are pointed down towards the ground. This is due to the leveler sensor being stationed only in the rear of the car.

To counter this issue, CUSCO has engineered the AUTO LEVELIZER to enable the re-setting of the correct headlight trajectory. In some cases, the ECU can be reset to readjust the headlights according to its vehicle height; however there are parameter limitations for electronic sensors which will eventually require a mechanical approach to the solution.


Application: GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg
Part No: 00B 628 A (short)
MSRP w/5% Tax: ¥5,250
Base MSRP: ¥5,000
JAN Code: 4 996338 049933
Specs:  Rod adjustment paramenter - 73mm~90mm
Notes:  Only for HID equipped vehicles
May require different length Levelizer for vehicles lowered beyond recommended height.

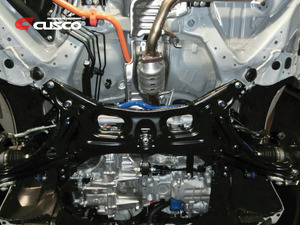

☆Sway Bar (front)

◆Retains comfort and minimizes roll during cornering
◆Increases stability at high speeds especially during lane changes on the highway.


Application: GP5_HYBRID.jpg GK5_15X.jpg GK5_RS.jpg  TBD・・・ GK3_13G.jpg

Part No: 3A2 311 A28
MSRP w/5% Tax: ¥27,300
Base MSRP: ¥26,000
JAN Code: 4 996338 095619
Specs:  28mm hollow 140% increase vs factory, Bushings included
Notes:  Install Time 1.5hr

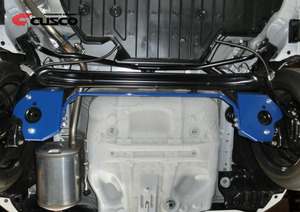

☆Rear Stabilizer Bar

◆Retains comfort and minimizes roll during cornering
◆Increases stability at high speeds especially during lane changes on the highway.


Application:  GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg
Part No: 3A2 311 B16
MSRP w/5% Tax: ¥26,250
Base MSRP: ¥25,000
JAN Code: 4 996338 095626
Specs:
16mm hollow
Notes: Rear torsion beam, 100% bolt on. (Suspension brands other than Cusco may require alteration)




■Chassis Brace (Strut Bar, Lower Arm Bar)

☆Strut Tower Bar (Rear Type-OS, Quick Release)

◆Ties two strut points to supress chassis twist
◆Maintains chassis to be at a static state, enabling a smooth and sharp handling characteristic
◆Quick Release couplers enable the rear strut bar shaft to be removed without the use of tools.




Application: GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg (Fitment for 4WD models TBD)
Part No: 3A2 541 C
MSRP w/5% Tax: ¥18,900
Base MSRP: ¥18,000
JAN Code: 4 996338 039019
Specs:
Type OS shaft + Quick Release
Notes: Requires rear interior panel modification

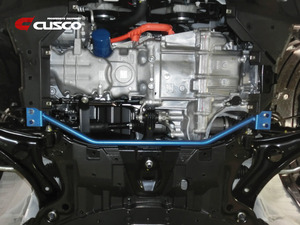

☆Lower Arm Bar (Front, Version 1)

◆Secures both sides of the front lower arm to supress chassis twist
◆Maintains chassis to be at a static state, enabling a smooth and sharp handling characteristic
◆Designed with ground clearance in mind.


Application:  GP5_HYBRID.jpg   TBD・・・ GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg
Part No: 3A2 475 A
MSRP w/5% Tax: ¥7,875
Base MSRP: ¥7,500
JAN Code: 4 996338 048080
Specs:
Version 1
Notes: Requires undercover modification





■Drivetrain (LSD, Clutch)

☆LSD (2 Types: Larger Volume C-Size LSD, Less Drag Torque D-Size LSD)

◆Type RS (internal coil spring) and Type MZ (cone spring)
  LSD types setup for virtually any type of driving situations are available!
・Type RS LSD is a highly reponsive unit with low initial torque. LSD locks up immediately, right when you need it.
・Type MZ LSD features a high initial torque setting making the rear end more predictable to control.

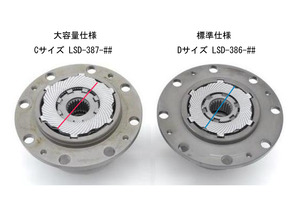

◆Two clutch plate sizes available.
・C Size (6.7 inch) Part No: LSD 387 > Spec-F versions also available.
 Increased volume LSD is ideal for gymkhana and mini circuits!
・D Size (FF1600) Part No: LSD 386
 Standard type LSD suited to minimize powertrain loss with less drag torque
◆CUSCO LSD peomotes lower lap times and increases vehicle control. Long lasting, and easy to adjust to your specific driving needs.

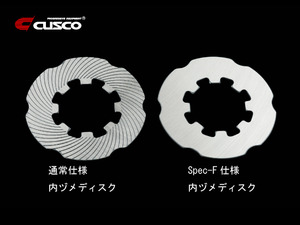

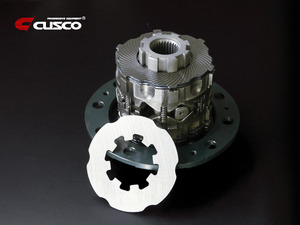

lsd_spec-f_img.jpg Spec-F_disc_comp.jpg

Application:  GK5_RS.jpg 6spd manual transmission models only

□Larger Internal Capacity C-Size Type RS
Part No: LSD 387 F / C / C15
MSRP w/5% Tax: ¥99,750
Base MSRP: ¥95,000
Specs: C-Size Type RS
Standard Setting:
F 1WAY(2 cams) 35°(standard)/45°
C 1WAY(1&1.5Way) 45°(standard)/On45°-Off15°
C15 1.5WAY(1&1.5WAY)
45°(standard)/On45°-Off15
※Spec-F has FT/CT/CT15 added to part no

Larger Internal Capacity C-Size Type MZ

Part No: LSD 387 A / B / B15
MSRP w/5% Tax: ¥98,700
Base MSRP: ¥94,000
Specs: C-Size Type MZ
Standard Setting:
A 1WAY(2 cams) 35°(standard)/45°
B 1WAY(1&1.5Way) 45°(standard)/On45°-Off15°
B15 1.5WAY(1&1.5WAY)
45°(standard)/On45°-Off15°
※Spec-F has AT/BT/BT15 added to part no


■Standard D-Size Type RS

Part No: LSD 386 F / C / C15
MSRP w/5% Tax: ¥99,750
Base MSRP: ¥95,000
Specs: D-Size Type RS
Standard Setting
F 1WAY(2 cams) 35°(standard)/45°
C 1WAY(1&1.5Way) 45°(standard)/On45°-Off15°
C15 1.5WAY(1&1.5WAY)
45°(standard)/On45°-Off15°

■Standard D-Size Type MZ

Part No: LSD 386 A / B / B15
MSRP w/5% Tax: ¥98,700
Base MSRP: ¥94,000
Specs: C-Size Type MZ
Standard Setting
A 1WAY(2 cam) 35°(standard)/45°
B 1WAY(1&1.5Way) 45°(standard)/On45°-Off15°
B15 1.5WAY(1&1.5WAY)
45°(standard)/On45°-Off15°

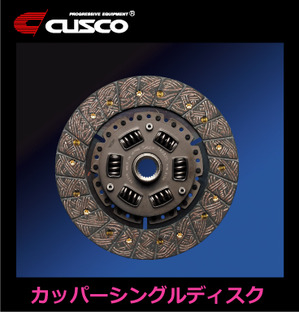

☆Clutch Copper Single Disk

◆Streetable clutch disk
◆Copper and carbon compound, resistant to high temperature and high loads
◆Sprung disk provides smooth engagement by minimizing shock applied to the transmission and other drivetrain components.


Application:  GK5_RS.jpg 6spd manual transmission models only
Part No: 00C 022 R369
MSRP w/5% Tax: ¥28,770
Base MSRP: ¥27,400
JAN Code: 4 996338 084729
Specs:  190mm disk/22.0, 20 tooth spline
Notes: Cusco Clutch Cover (00C 022 B369) recommended

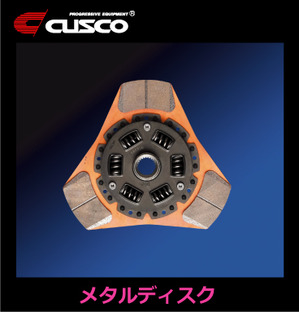

☆Clutch Metal Disk

◆Highly resistant to heat and long lasting sports clutch disk
◆Metal compound effectively transfers thermal and inertial load
◆Sprung disk provides smooth engagement by minimizing shock applied to the transmission and other drivetrain components.


Application: GK5_RS.jpg 6spd manual transmission models only
Part No: 00C 022 C369H
MSRP w/5% Tax: ¥29,925
Base MSRP: ¥28,500
JAN Code: 4 996338 083289
Specs:  190mm disk/22.0, 20 tooth spline
Notes: Cusco Clutch Cover (00C 022 B369) recommended

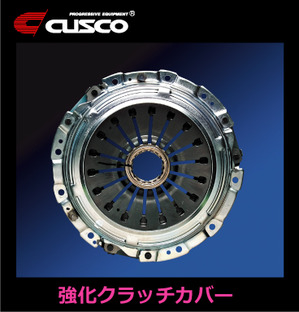

☆クラッチ クスコクラッチカバー

◆Manufactured to handle higher power loads with slightly increased pedal pressure.
◆A good choice for the street with minimum to moderate power enhancements. Excellent release and sharp clear operation.
◆Best when used with Cusco's reinforced metal or copper clutch disc.


Application:  GK5_RS.jpg 6spd manual transmission models only
Part No: 00C 022 B386
MSRP w/5% Tax: ¥32,130
Base MSRP: ¥30,600
JAN Code: 4 996338 082381
Specs: Use w/190mm disk / 5600N(570kgf) pressure
Notes: Cusco Copper Single (00C 022 R369) / Metal Single (00C 022 C369H) recommended

Clutch Disk and Cover also available as a set!

☆Copper Clutch Set

◆Copper Single Disk & Clutch Cover set

Application: GK5_RS.jpg 6spd manual transmission models only
Part No: 369 022 F
MSRP w/5% Tax: ¥54,810
Base MSRP: ¥52,200
JAN Code: 4 996338 080752
Specs:  Copper Single Disk & Clutch Cover
Notes:  Save $74.00 when purchased as a set

☆Metal Clutch Set

Metal Single Disk & Clutch Cover Set

Application: GK5_RS.jpg 6spd manual transmission models only
Part No: 369 022 G
MSRP w/5% Tax: ¥55,860
Base MSRP: ¥53,200
JAN Code: 4 996338 080745
Specs:  Metal Single Disk & Clutch Cover
Notes:  Save $79.00 when purchased as a set

■Exterior Parts (Folding Tow Hook, Short Antenna, Adjust Number Stay)

☆Folding Tow Hook (front)

◆Painted red for maximim visibility, bolts on to factory tow hook hole positioned at the perfect length.
◆Internal ball bearing design enables a locking zero and 90 degrees position.
◆High quality steel, one piece design (no welding) JAF compliant.


Application:  GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg (4WD可)
Part No: 3A2 017 F
MSRP w/5% Tax: ¥10,290
Base MSRP: ¥9,800
JAN Code: 4 996338 051967
Specs: Red color, front


☆Short Antenna (Inside thread, Black / Carbon look)

◆Two types of stylish antennas available
◆Reception is not affected due to an internal helical antenna design.
◆Easy to install. Add a bit of European styling to your vehicle!

・Black Antenna

Application: GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg (Also fits 4WD versions)
Part No: 00B 809 BB
MSRP w/5% Tax: ¥2,625
Base MSRP: ¥2,500
JAN Code: 4 996338 093820
Specs: Color black, internally threaded
Notes:  Direct factory replacement, External thread adapter included


・Carbon Antenna

適合車種 GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg (Also fits 4WD versions)
Part No: 00B 809 BC
MSRP w/5% Tax: ¥2,625
Base MSRP: ¥2,500
JAN Code: 4 996338 093813
Specs:  Carbon look, internally threaded
Notes:  Direct factory replacement



■Engine Parts (Sports Oil Filter / Radiator Cap)

☆Cusco Oil Filter

◆Cusco Oil Filter features a high strength magnet that removes the iron powders and any other metallic particles that can harm an engine.
◆The mesh supports the paper filter from collapsing or changing shape during high pressure, when experiencing extreme conditions.
◆The pleated filtration paper catches fine dust, contanminants without stagnating flow.
◆The special rubber material keeps it leak-proof during high and low temperature environments.
◆Reinforced relief valve keeps the proper pressure traveling through the filter, even when viscosity changes.


Application:  GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg (Also fits 4WD versions)
Part No: 00B 001 A
MSRP w/5% Tax: ¥2,625
Base MSRP: ¥2,500
JAN Code: 4 996338 030764
Specs: Direct factory replacement
Notes: Please follow proper torque and installation specs

☆High "Pressure Radiator Cap (Type B) 1.3kg/㎠

◆Increses the relief pressure for the boiling point of the engine water system.
◆Strengthened relief valve spring that retains coolant volume and pressure.
◆Silicone based sealant tolerant against higher pressures.


Application: GP5_HYBRID.jpg GK3_13G.jpg GK5_15X.jpg GK5_RS.jpg (Also fits 4WD versions)
Part No:  00B 050 B13
MSRP w/5% Tax: ¥2,625
Base MSRP: ¥2,500
JAN Code: 4 996338 001528
Specs: Direct factory replacement type,  1.3kg/㎠ pressure
Notes: Enables a higher pressured cooling system, please confirm that the system has no area prone to leaks before installation.






pagetop
